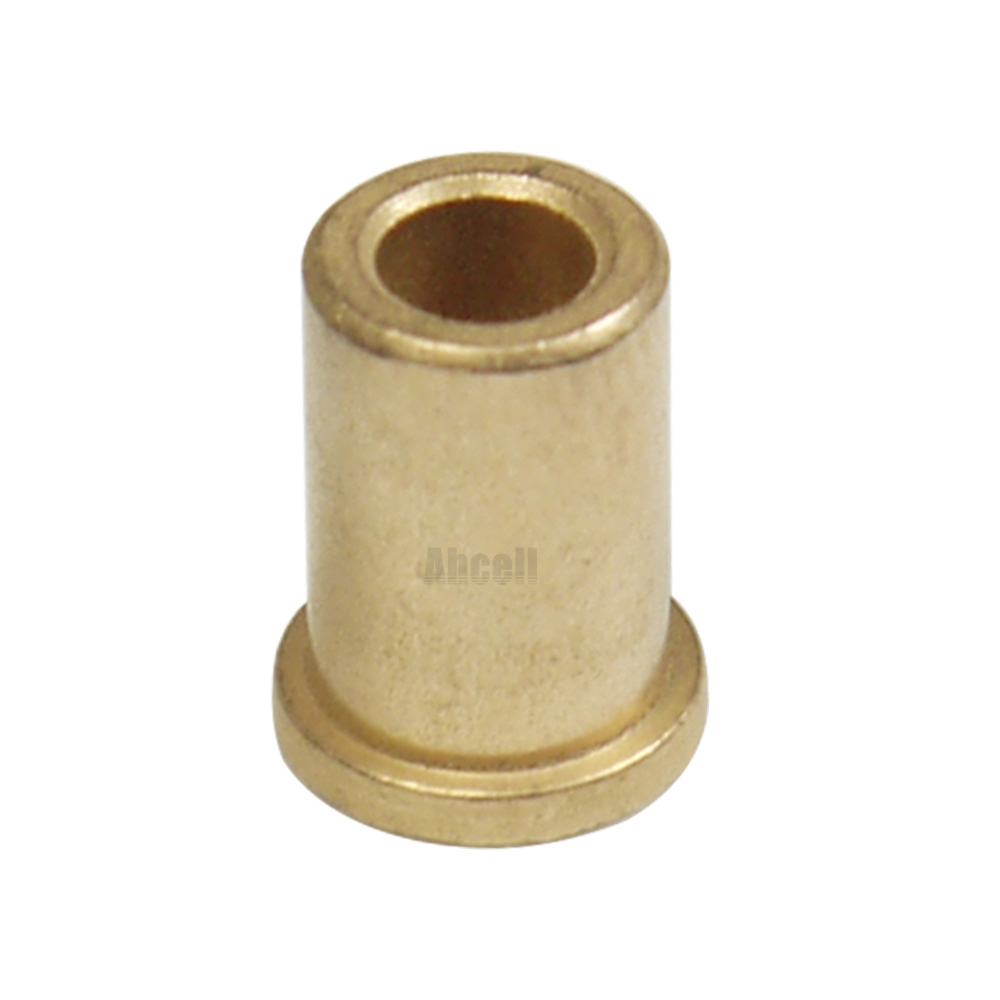

The Role of Sintered Bronze Graphite Bearings in Modern CNC and Precision Equipment

Addressing the Demands of Modern Machinery

The evolution of CNC, injection molding, and die casting equipment is defined by higher operational speeds and increased thermal loads. As noted in recent industry analysis, the machines being built today "run hotter" and "can't afford friction." This environment places exceptional demands on bearing components, pushing self-lubricating solutions from a niche option to a front-and-center technology. Sintered bronze graphite bearings, conforming to standards like MPIF CTG-1000 and DIN SINT-B51, are engineered for this reality. The free graphite impregnated within the bronze matrix provides continuous solid lubrication, directly addressing the need for reliable performance under boundary lubrication conditions and during emergency running where grease or oil may fail.

Technical Advantages for Precision Applications

These bearings are fundamentally maintenance-free constructional elements, a key feature for automated precision equipment where downtime is costly. Their functionality stems from a porous sintered material structure. Unlike oil-impregnated variants, the graphite acts as a solid lubricant, which is not prone to drying out, dripping, or contaminating sensitive processes. This makes them particularly suitable for applications like CNC guide bushings, linear motion systems, and precision alignment sleeves in clean or hard-to-service environments. Their design supports high frictional speeds at relatively low loads, a common scenario in precision guide and alignment roles.

Aligning with Industry Trends

The adoption of such bearings aligns with two dominant industry trajectories for 2025: performance under extreme conditions and sustainability. The drive for energy efficiency in manufacturing, partly fueled by regulatory and consumer expectations, benefits from components that reduce parasitic drag without fluid lubricants. Furthermore, the move towards more sustainable machine design emphasizes durable, long-life components and the elimination of lubricant waste. Sintered bronze graphite bearings contribute by extending service life, minimizing maintenance interventions, and removing the need for lubricant disposal, supporting broader goals of eco-friendly materials and energy efficiency in bearing design.

Practical Implementation in Key Sectors

In practical terms, these bearings are specified for dynamic applications where reliability is paramount. In injection molding, they serve as component bearings for moving platens and ejector systems. Within die casting units, they are employed as guide pins for cores and slides, withstanding high ambient temperatures. For extrusion equipment, they function as screw support bearings, where the graphite's lubricity is maintained under continuous operation. The technology offers a proven solution for minimizing downtime and reducing total operational costs, which is why it remains a staple in precision engineering. We provide these and related high-performance sintered component solutions for engineers designing the next generation of industrial equipment.
