SAE841 Bronze Oil Sintered Powder Metallurgy Bearing and ComponentsSAE841 Bronze Oil Sintered Powder Metallurgy Bearing and Components

SAE841 Bronze Oil Sintered Powder Metallurgy Bearing and Components

  • Standard: Soperb Oilites
  • Code: SAE-841
  • Type: Bronze Base
  • Applications: Bearings or Mechanism Parts
  • Product description: The SAE-841 is a tin bronze (CuSn10) oil sintered powder metallurgy bearing and component, designed for high-performance self-lubricating use. Suitable for power tools and industrial machinery, it adh
  • INQUIRY

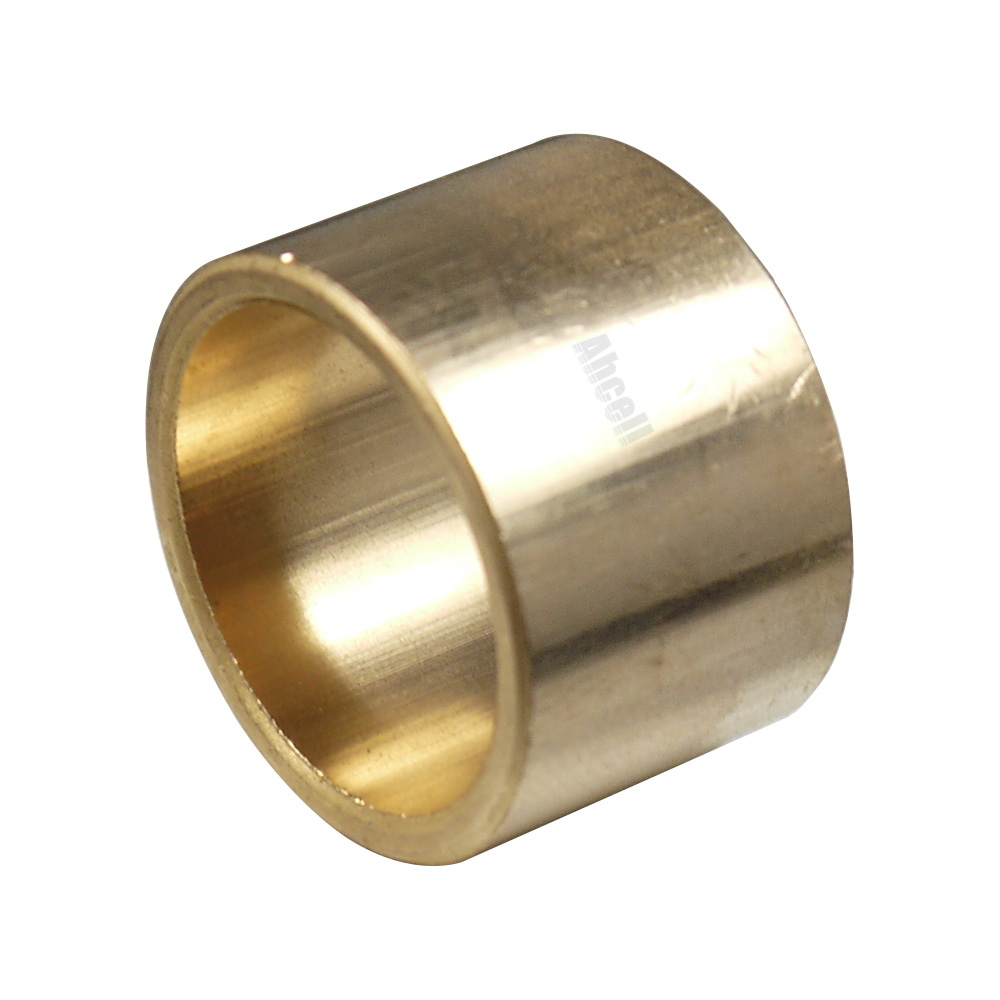

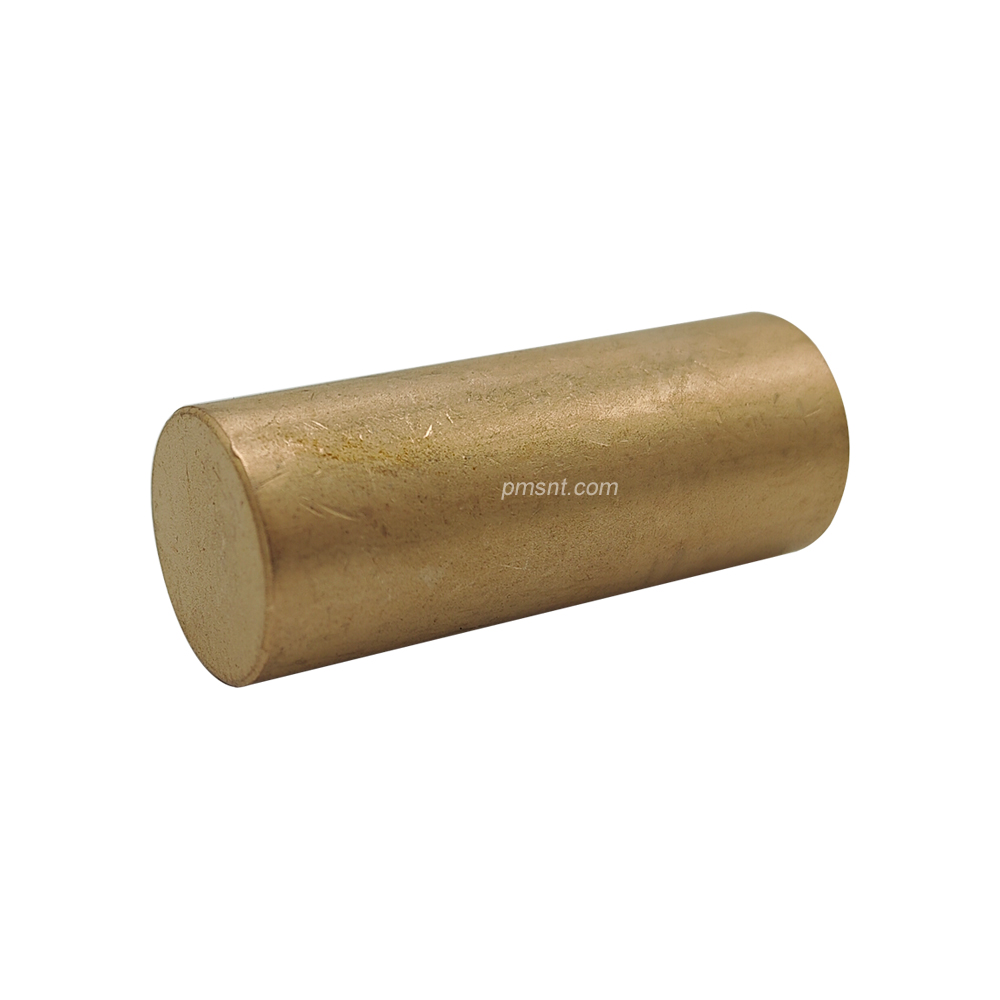

SAE-841 Bronze Base (Cu90Sn10) Sintered Bearing Material

SAE-841 is a bronze (Cu90Sn10) base, oil-impregnated sintered self-lubricating bearing material per Soperb Oilites standard. Conforming to SAE 841 / MPIF CT-1000-K26 specifications. Widely used in automotive, appliance, and general industrial bearing applications requiring quiet operation and good wear resistance.

Chemical Composition (Soperb Oilites / SAE 841 / MPIF CT-1000-K26)

Element Content
Cu 87.5~90.5%
Sn 9.5~10.5%
Graphite 0~0.5%
Other ≤1.0%

Mechanical & Physical Properties

Density (gm per cu. cm) 6.4-6.8

Porosity (% oil by vol.) 19.0 min

"K" Strength Constant 26,500 psi

Elongation (% in one inch) 1

Yield Strength in Comp (psi) 11,000


Comparable Specifications

ASTM - B-438-05 Grade 1 Type II

Military - MIL-B-5687D

MPIF - CT-1000-K26
