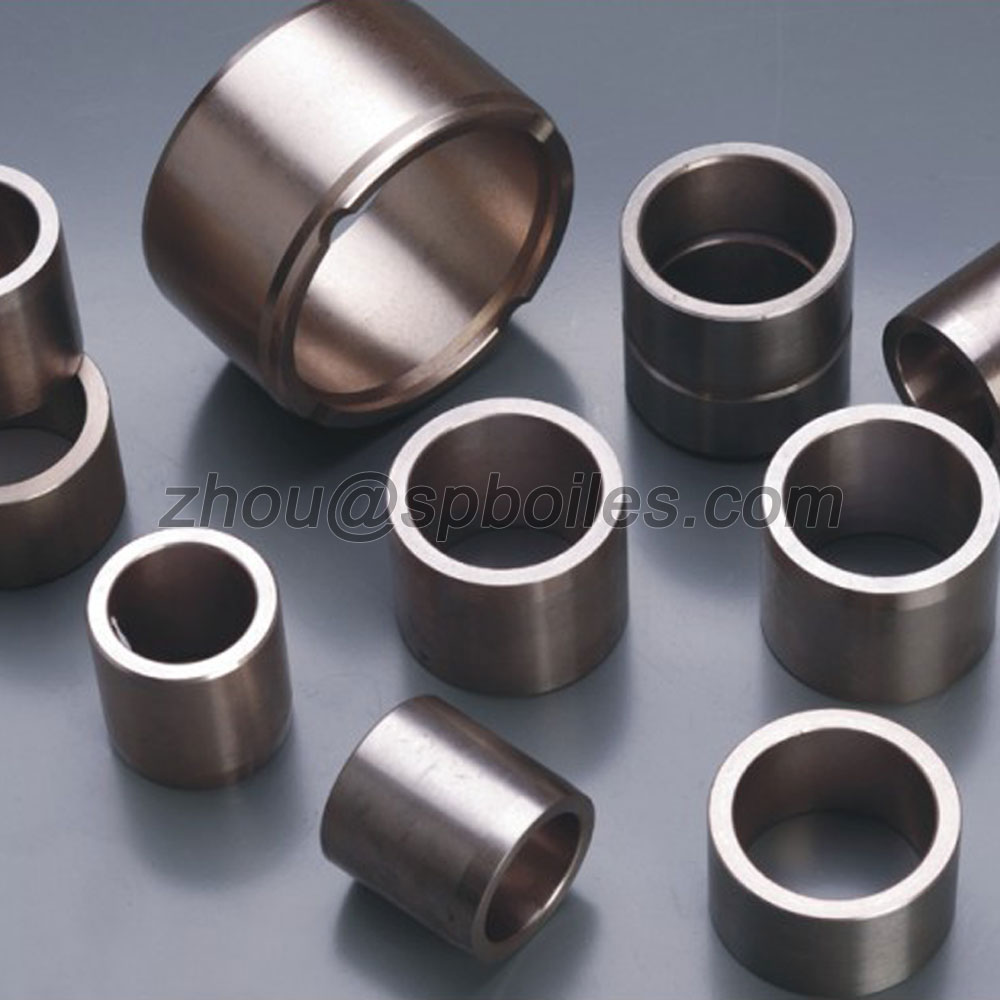

FN-0205 Iron Copper Powder Metallurgy Bearing and Components

Standard: MPIF Standard 35
Code: FN-0205
Type: Iron-Copper Base
Products: Bearing & Parts
Product description: This FN-0205 iron-copper powder metallurgy bearing and components comply with MPIF Standard 35, offering a cost-effective solution for power tool applications. The iron-copper base provides balanced s
INQUIRY

FN-0205 Iron-Nickel Sintered Material

FN-0205 is a nickel-steel sintered material per MPIF Standard 35. Nickel addition significantly improves toughness and impact resistance, making it suitable for dynamic load bearing and structural applications requiring high ductility.

Chemical Composition (MPIF Standard 35)

Element	Content
Fe	Balance
Cu	0–2.5%
C	0.3–0.6%
Ni	1–3%
Other	≤2.0%

Mechanical & Physical Properties

Property	Value
Density	6.6–7.4 g/cm³
Hardness	HRB 44–78
Tensile Strength (Ultimate)	280–480 MPa
Tensile Strength (Yield)	170–280 MPa
Impact Force	8–46 J
Transverse Rupture Strength	450–1030 MPa

Material designation per MPIF Standard 35 — Material Standards for PM Structural Parts. Values shown represent the typical range across different density levels. HT suffix indicates heat-treated condition (quenching and tempering).
